Runner Breaker

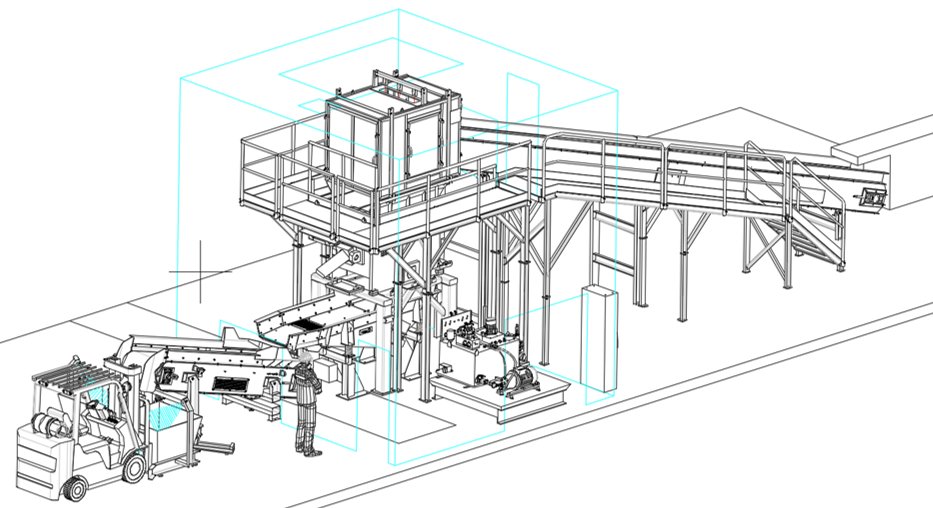

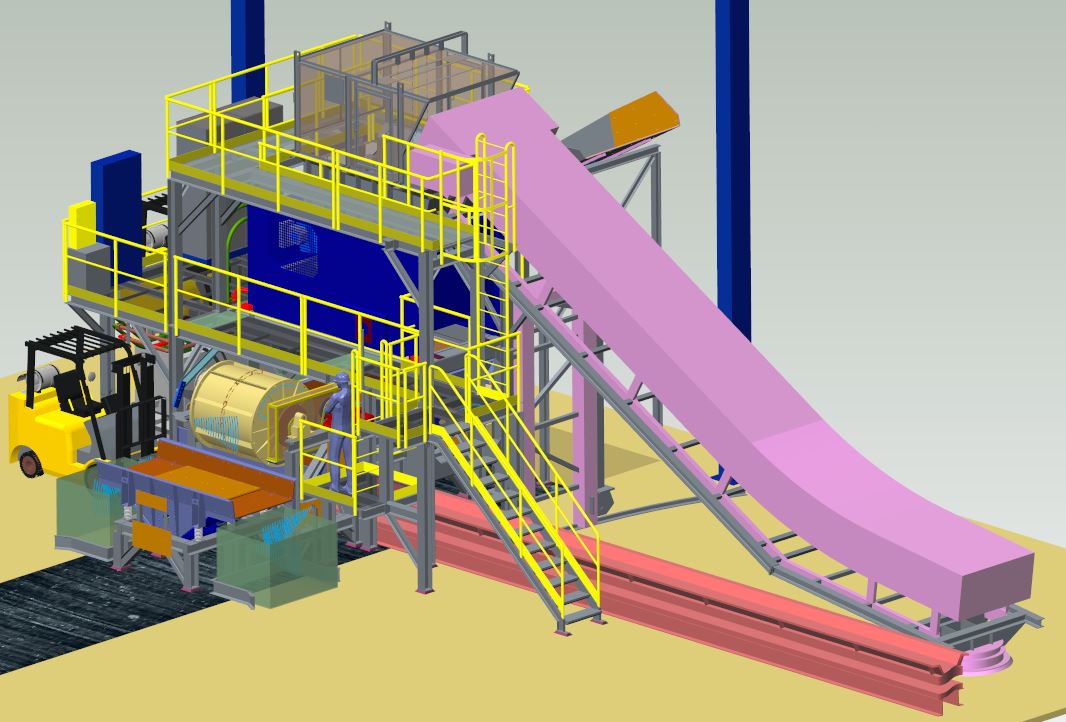

 - Creo Parametric.jpg "Layout example")
The runner breaker is the most experience machine in the market: more than 15 years and over 280 units operating successfully worldwide, supporting its effectiveness.
Runner Breaker is designed to break runners and gatings of ductile iron, grey iron, bronze and aluminum, and reduce its volume to 65% of their initial size.
| ALP 600-50 | ALP 900-50 | ALP 1200-100 | ALP 1500-150 | ALP 1500-200 | ||
|---|---|---|---|---|---|---|
| Length (mm) | 2300 | 2750 | 2900 | 4250 | 4250 | |
| Width (mm) | 850 | 1250 | 1550 | 1950 | 1950 | |
| Height (mm) | 1100 | 1300 | 1400 | 1900 | 1900 | |
| THROUGHPUT (Tn/h) | ||||||
| Gray iron | 5 | 8 | 12 | 18 | 20 | |
| Ductile iron | 3 | 5 | 8 | 14 | 15 | |
| Aluminium | 1,5 | 2,5 | 4 | 7 | 8 | |
| Opening size | 600x600 | 900x900 | 1200x1200 | 1500x1500 | 1500x1500 | |
| Working pressure (MPa) | 12 | 12 | 12 | 12 | 10 | |
| Motor (Kw) | 15 | 15 | 37 | 45 | 75 | |
| Weight (Kgr.) | 5.500 | 8.300 | 12.500 | 29.000 | 37.000 |
Advantages:
- Increase density of re-melts •Improve the furnace efficiency
- Separate most of the sand during breaking •Improvements on manipulation of the re-melts (transport and charge)
- Easy integration in your installations
- Eliminates bridging in furnace
|
